Bill dispenser

Dispenses banknotes from the pay-station vault.

Bill dispenser — Bill-dispenser photo from the Legacy POS System export.
Bill-dispenser photo from the Legacy POS System export.

More views

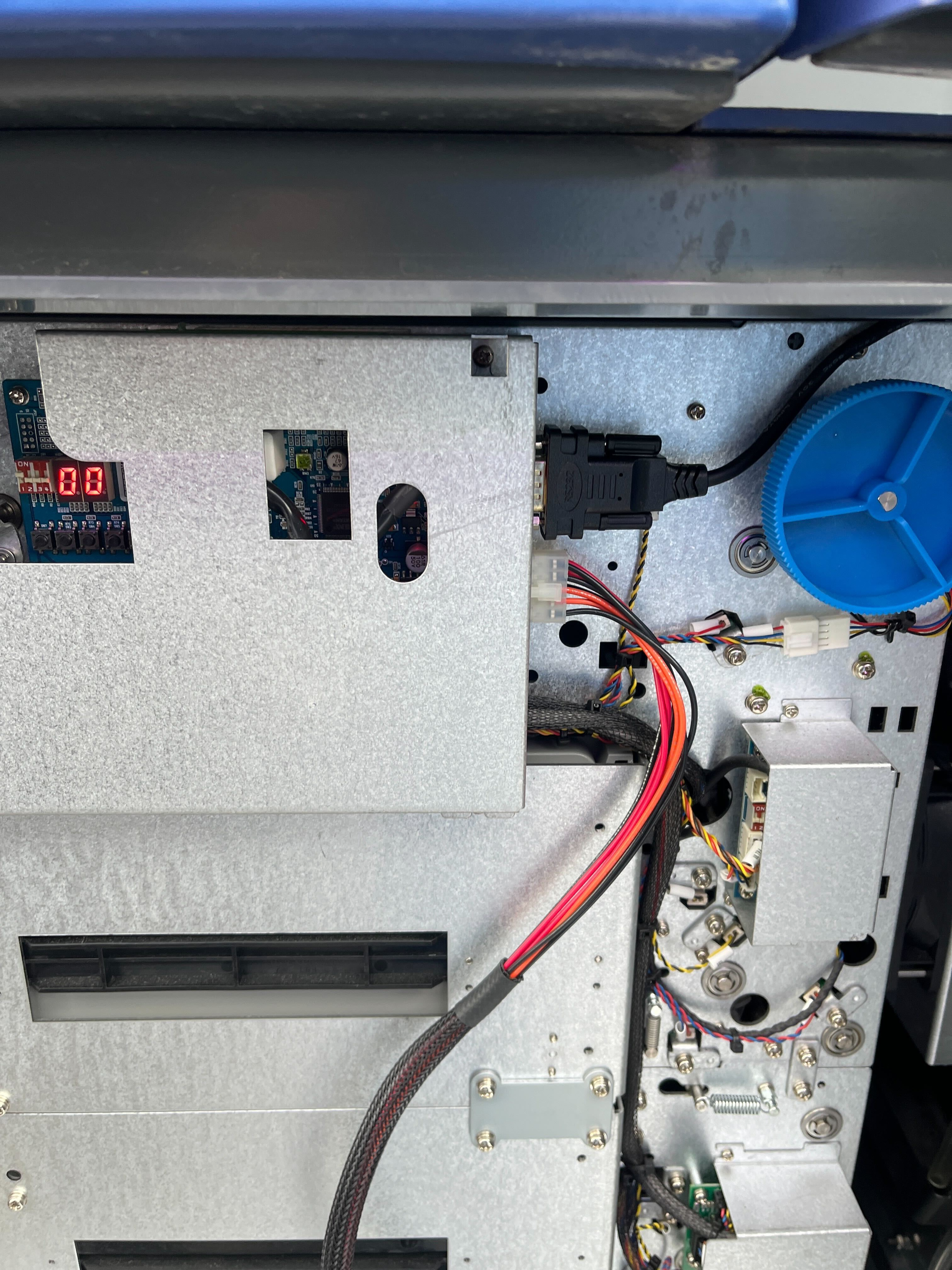

Genmega HCDU view showing the diagnostic display, serial connection and installed mechanism.
Genmega HCDU view showing the diagnostic display, serial connection and installed mechanism.

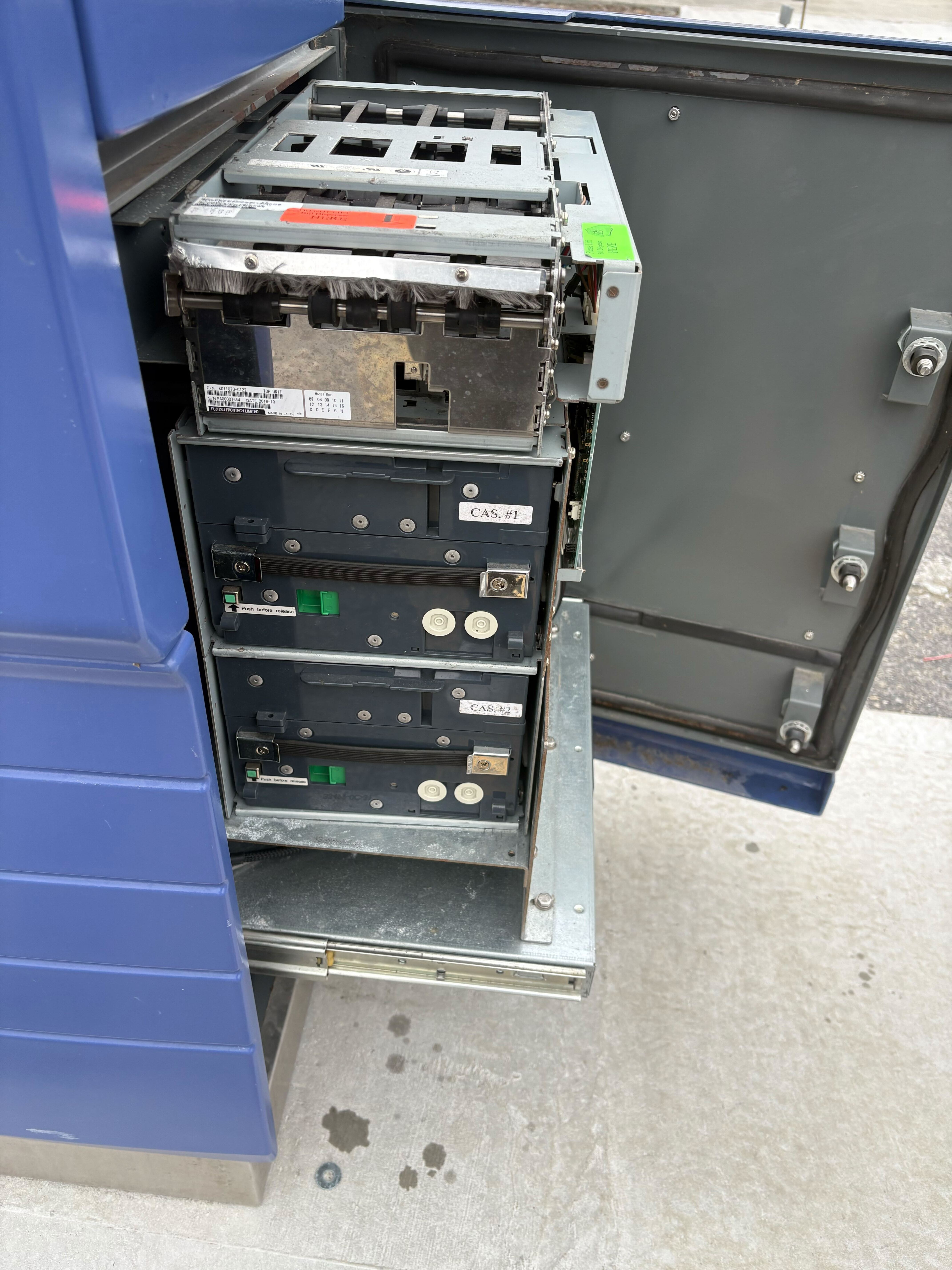

Fujitsu F400 as identified in the source, with the dispenser extended and two cassettes visible.
Fujitsu F400 as identified in the source, with the dispenser extended and two cassettes visible.

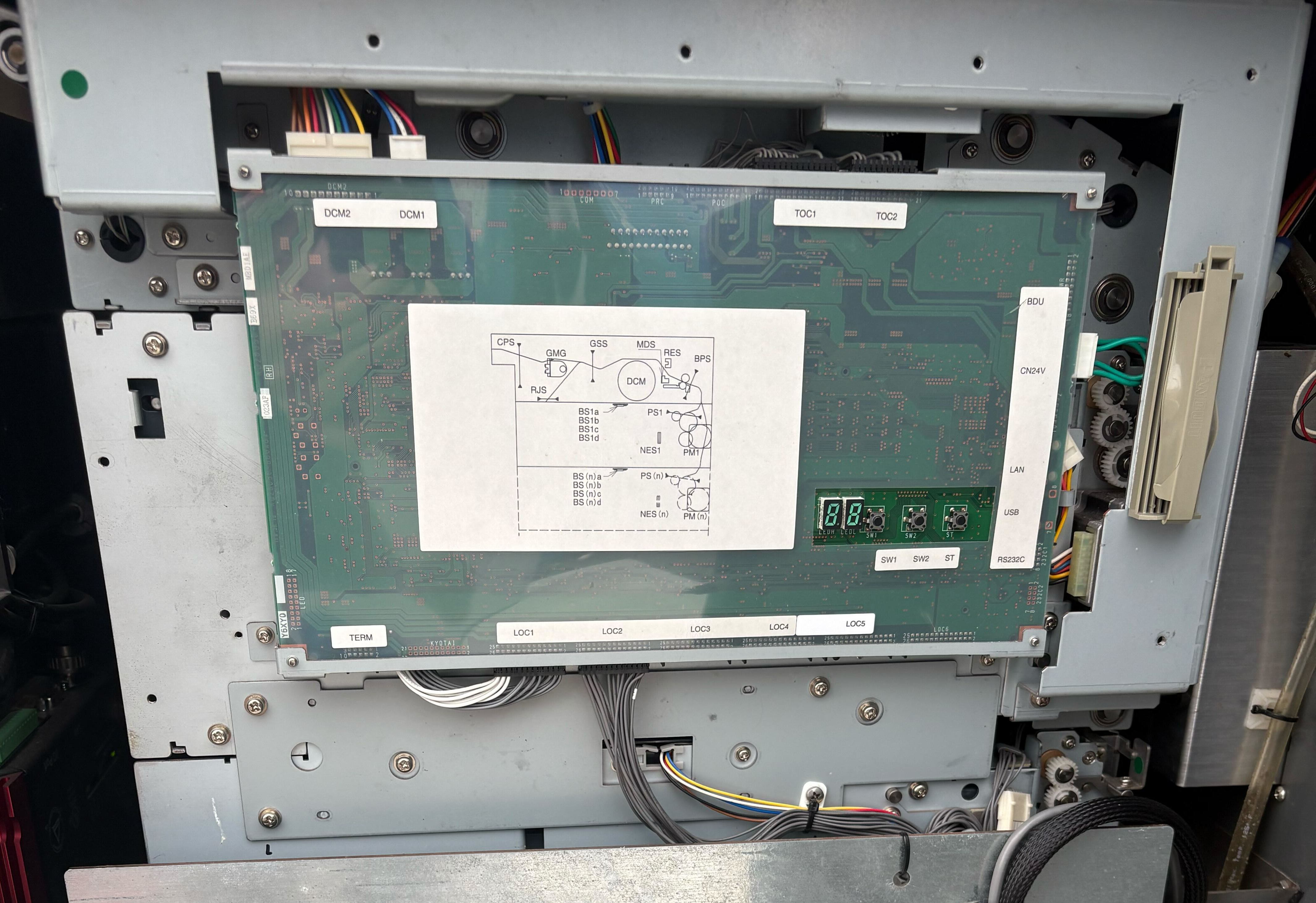

Fujitsu F400 main-board reference, showing the labeled connections and diagnostic display.
Fujitsu F400 main-board reference, showing the labeled connections and diagnostic display.

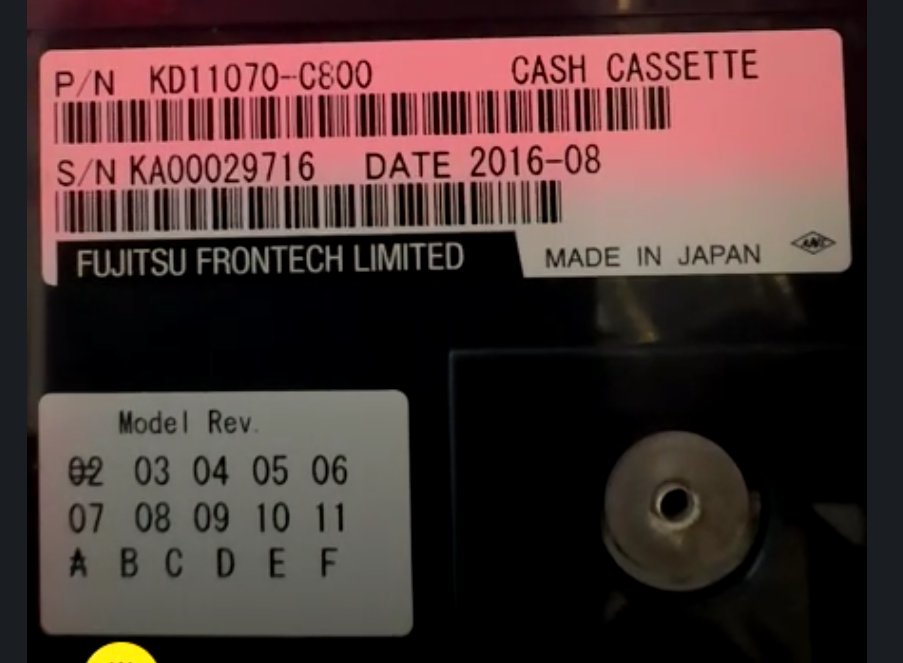

Cassette label shown under the source’s Fujitsu F400 section: Fujitsu Frontech P/N KD11070-C800.
Cassette label shown under the source’s Fujitsu F400 section: Fujitsu Frontech P/N KD11070-C800.

What it does

Dispenses banknotes from the pay-station vault.

Connections and installation

The retrofit guides connect the dispenser to middleware using serial-to-Molex and serial-to-USB cables. The XPT5 guide includes the TM1 jumper step.

Genmega and Fujitsu photo references

The pictures below add Genmega HCDU and Fujitsu F400 views from Cash Middleware Setup. The cash diagnostic guide also includes the serial-converter layout and an F56/F53/F50 connector close-up.

Guides and references

Getting help

Contact WWX Support: (401) 209-1110 or submit a ticket. Only White Water technicians contact NXT Wash. Report the location, lane number, symptom, and which functions still work.
