RFID reader

Reads a member’s windshield tag at the lane.

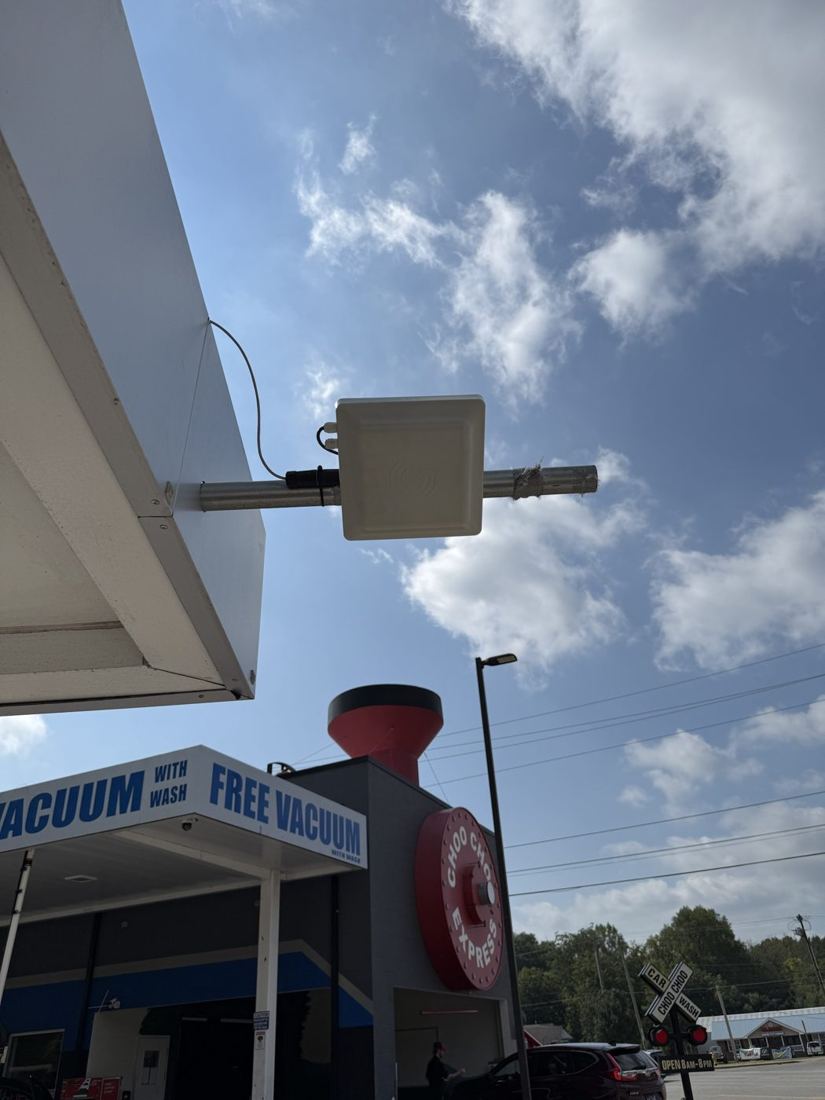

RFID reader mounted above the lane. From NXT Wash Site Network Topology; image by the operator.

More views

Full view of the RFID reader installation. From NXT Wash Site Network Topology.
Full view of the RFID reader installation. From NXT Wash Site Network Topology.

What it does

Reads a member’s windshield tag at the lane.

Connections and installation

Preferred addresses start at 192.168.100.161. The October diagram connects each reader to its pay-station switch.

Guides and references

Getting help

Contact WWX Support: (401) 209-1110 or submit a ticket. Only White Water technicians contact NXT Wash. Report the location, lane number, symptom, and which functions still work.
